Workload Management

Note

Workload management is restricted to members of 'admin' and 'kuiper' user groups

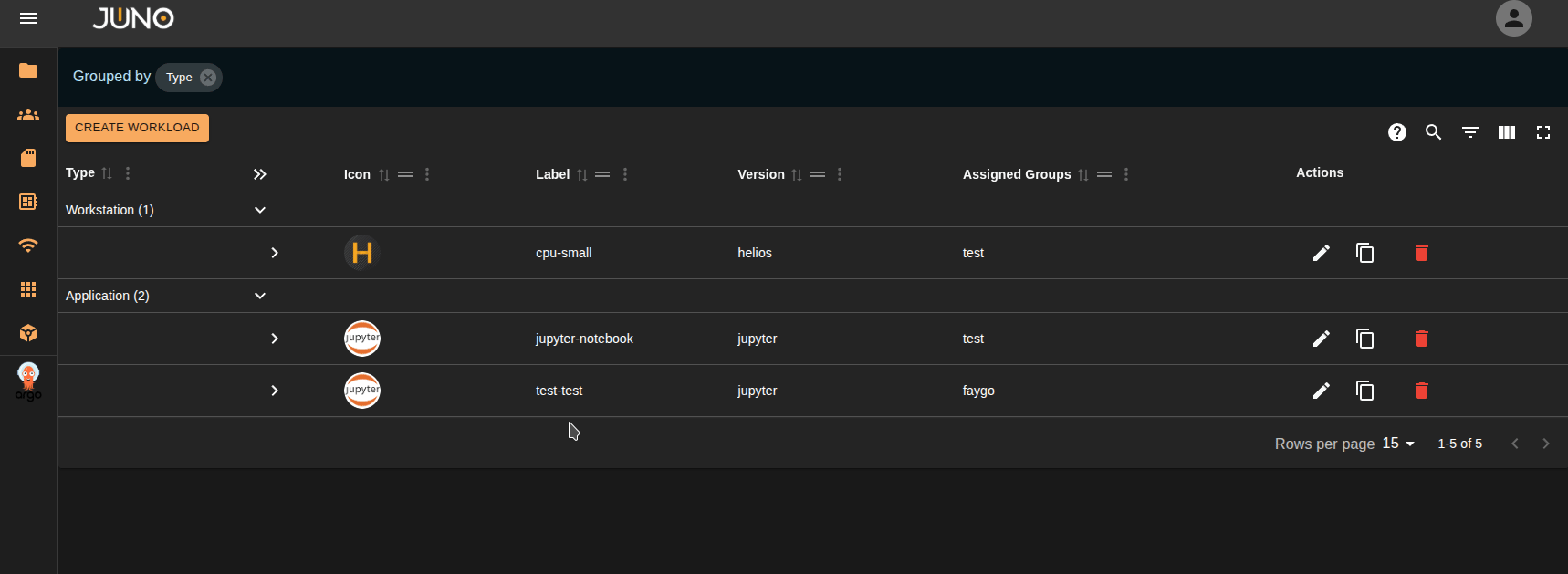

The workload management page allows users to create, edit, and delete workload templates, including assigning templates to specific groups and projects. Each template row in the table can be expanded to show additional details for the workload.

Pre-requisites

Before continuing, ensure you have installed a workload template schema from Terra. You can find the instructions for this in the Terra Plugin Installation documentation.

Template Creation

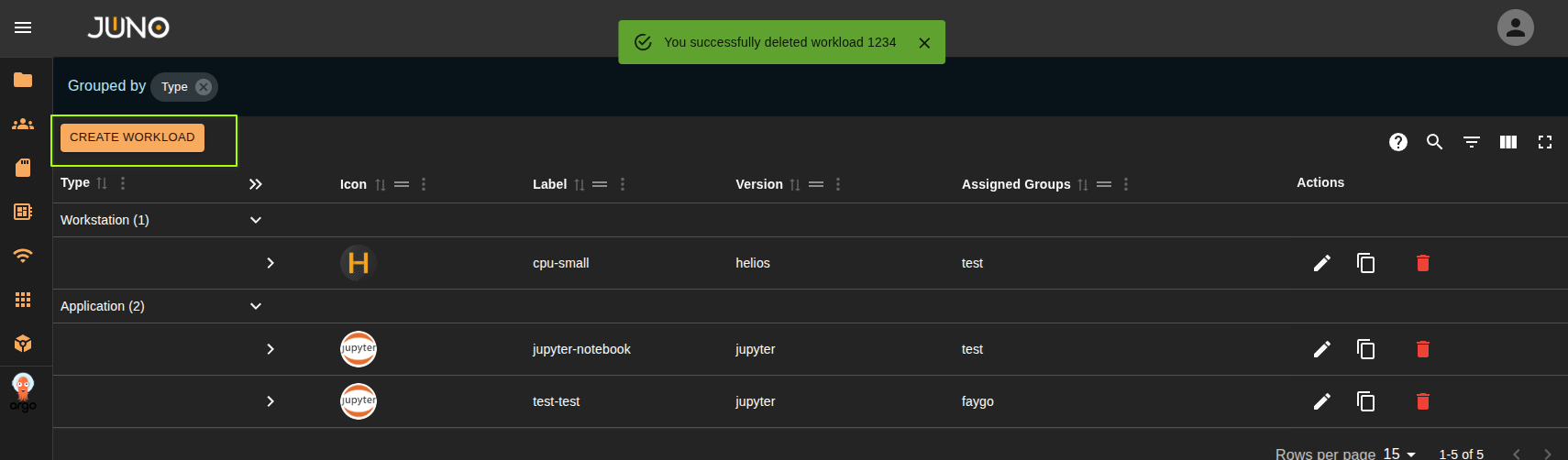

Use the Create button at the top left of the table to open the template creation wizard.

Schema Version

The first drop down will list the available schema template versions. These will be grouped by the workload type you are creating the template for. Once selected, the template schema fields will appear for you to fill out.

Schema Fields

The schema fields available may differ between the schema version selected. The UI will prompt you for all required fields for the schema. Once the fields are filled out simply click submit at the bottom right, and the workload template will now be created.

Schema Field Types

When authoring a workload template via Terra the author of the plugin can define additional fields within the configMaps data. These are then populated into the Genesis front end UI.

Please note

Not all Genesis release versions have full field support. Field type and support is continuously added in newer release versions. See Terra's Plugin Fields documentation for the full list of supported field types and properties.

Template Env Variables

Add Environment Variables to a template, which can be used and accessed directly from within a workload.

Template Group/Project Assignment

During template creation you must assign the template to at least one group. Assigned templates are available only to the selected group(s); you can scope them to a project or to a specific user group. Learn more about user management here

Template Actions

Edit

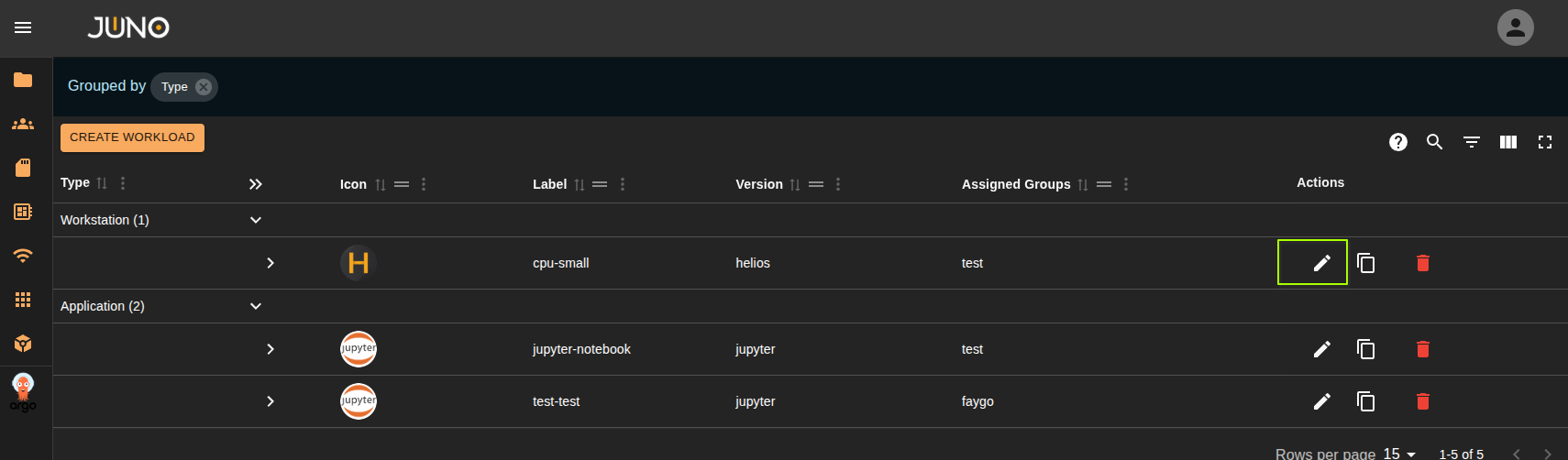

From the main table, users can choose to edit a workload template by clicking the pencil icon on the template's row. Doing so will pull up the same creation form, pre-filled in with the current template values. Users can edit any field as needed. The schema version will default to the current template's version, and is not editable. If a new version is needed, users can create a new workload via the CREATE WORKLOAD button.

Delete

Users can also choose to delete a workload template by clicking the red trash can icon on the template's row. The user will be prompted with a confirmation before proceeding.

Duplicate

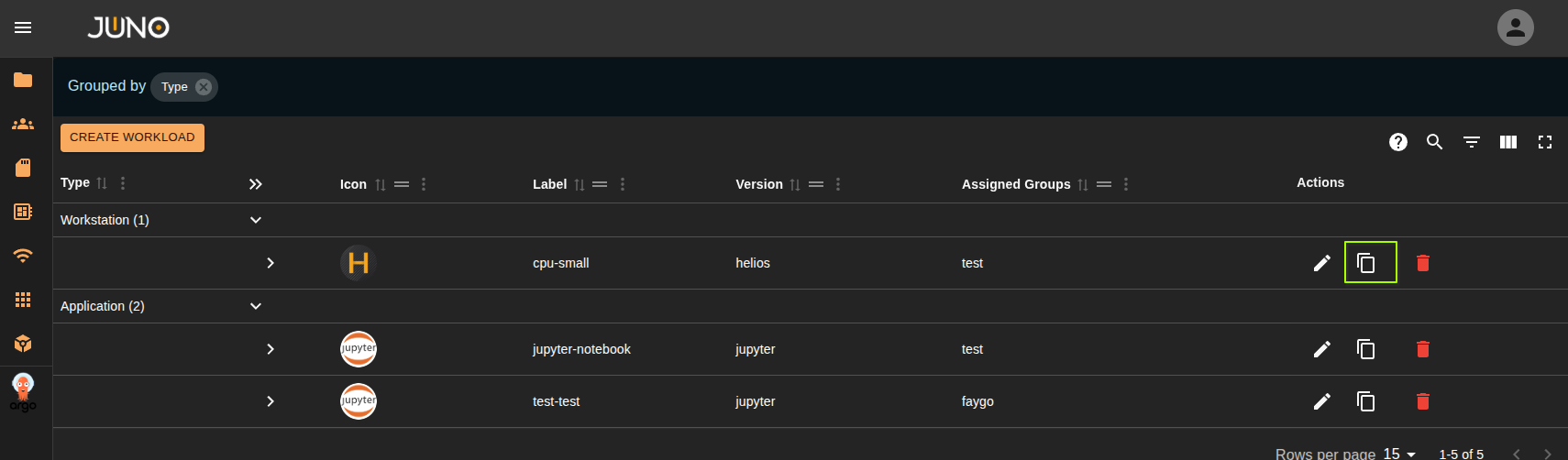

Users can duplicated a template by selecting the duplicate icon on each row.

Upgrade

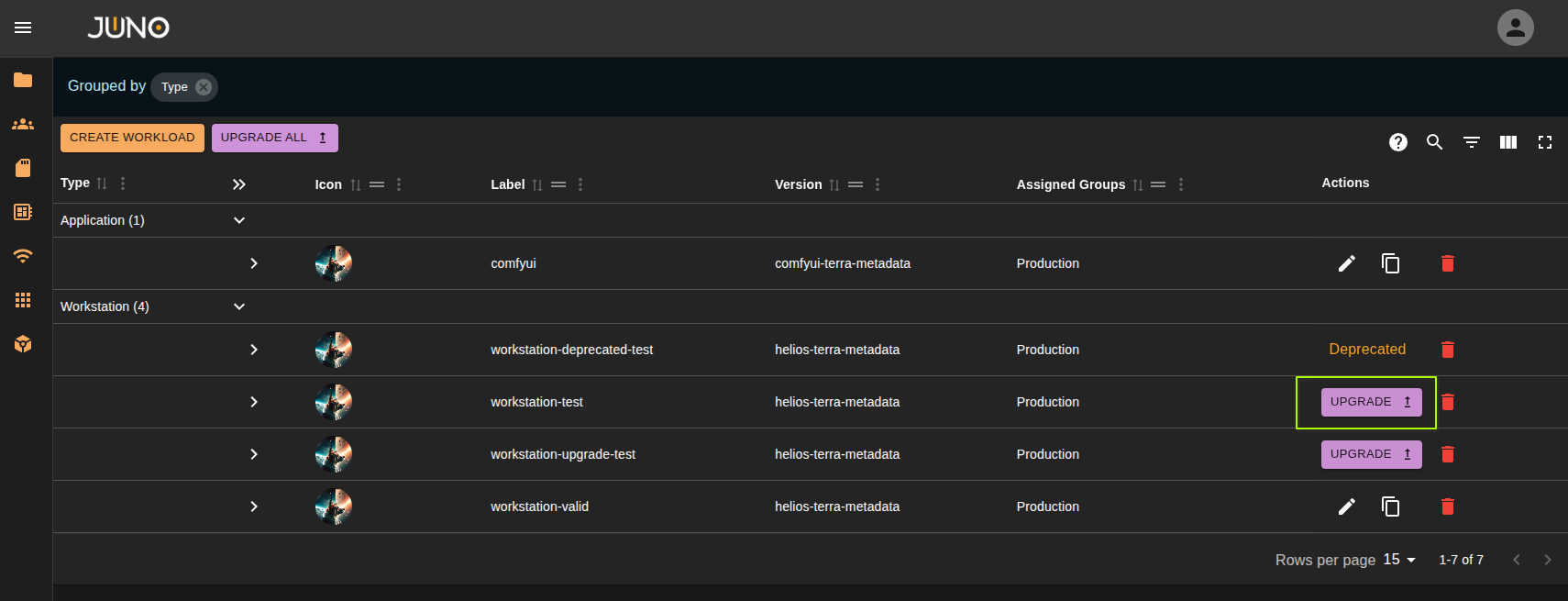

When a chart for a template changes, you will be able to upgrade the template so it matches what changes the chart has. You can upgrade all templates in the table or upgrade a single template by selecting the upgrade button on the row.

Deprecated

A template becomes deprecated when the template matching schema is no longer found or if the template associated schema has changed, and it now has required fields the original template never had. You may continue using the template but you will no longer be able to edit the template.
